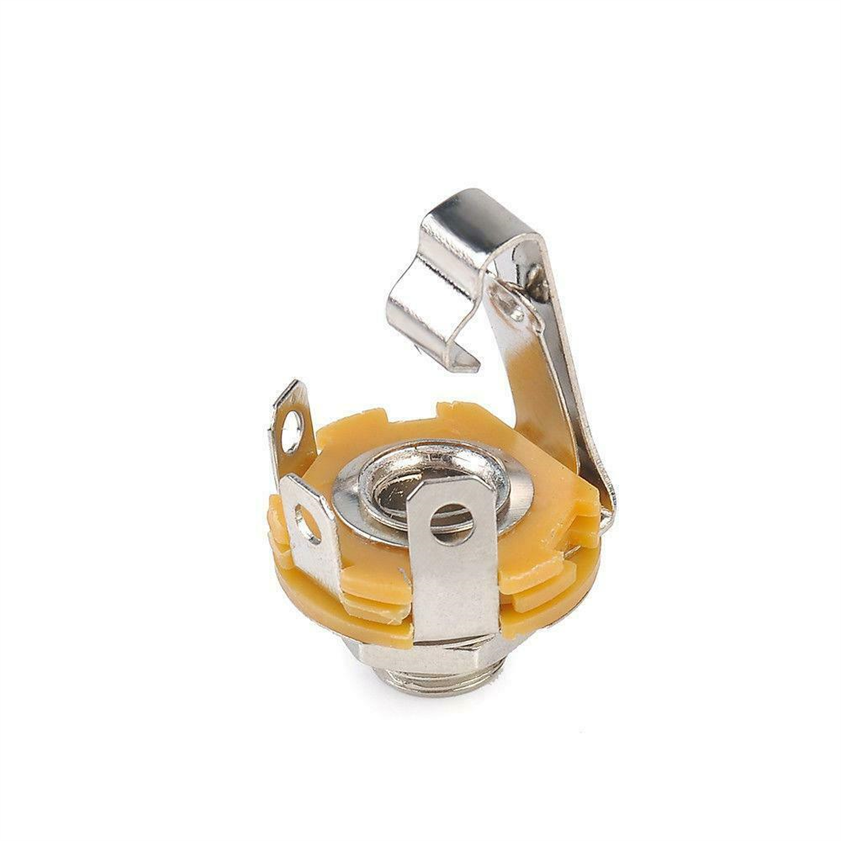

Audio Socket Jack Connector Panel 6.35mm 1/4 Inch Female

Audio Socket Jack Connector Panel 6.35mm 1/4 Inch Female

FEMALE CONNECTOR

Solder termination
Suitable for panel mounting
Overall length: 32mm (1.2 inch)
Diameter: 20mm (0.75 inch)
Depth behind panel: 23mm (0.9 inch)
Max. panel thickness: 5mm (0.2 inch)
Panel cut-out: 9mm (0.35 inch)
