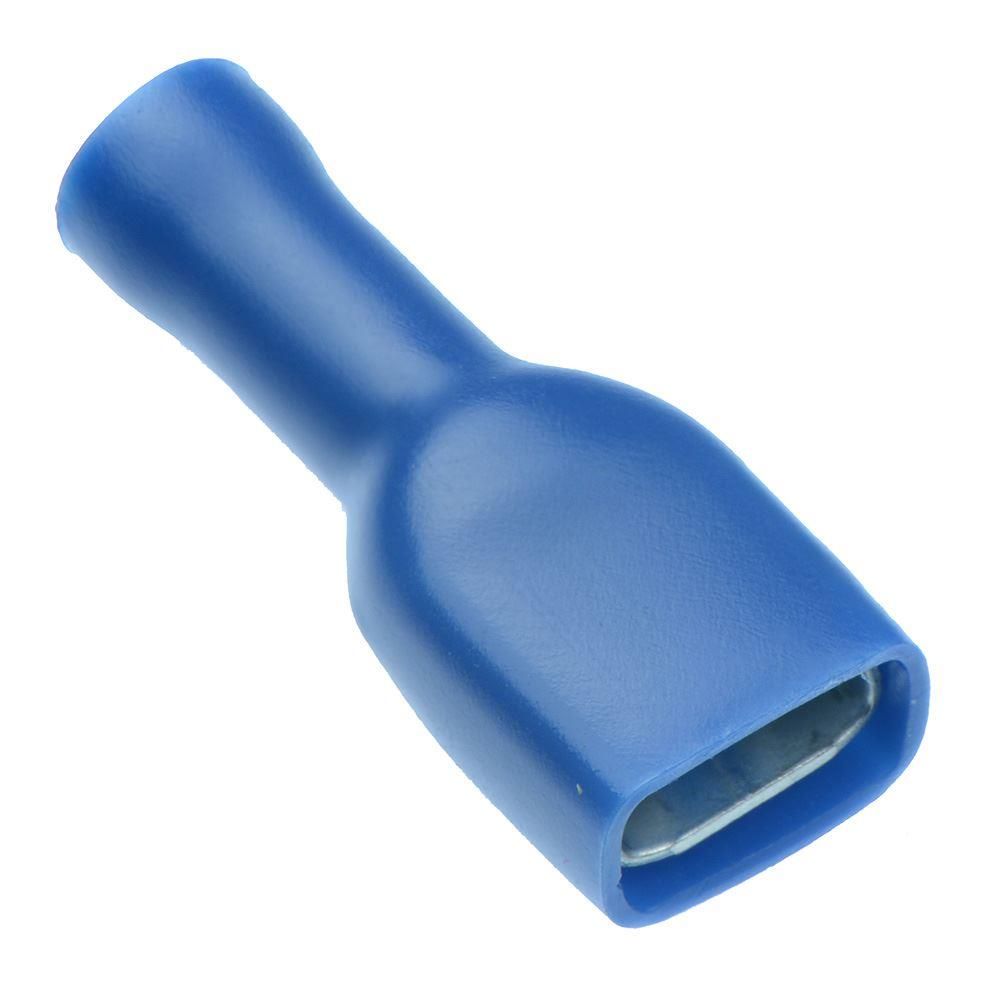

Blue Female Spade 6.3mm Fully Insulated (crimps terminals)

• Conductor: Brass
• Sleeve: Copper tubular
• Insulation: Vinyl
• Plating: Tin

• Operating temperature: -10°C to +75°C
• Max. voltage rating: 300V
• Max. current rating: Red - 10A, Blue - 15A, Yellow - 24A
• Flared barrel for easy wire insertion
• Low insertion force and easy crimping whilst ensuring secure termination

All terminals conform to BS4579 and BS4G178. Anti-vibration copper inserts are fitted to all Spades, Piggybacks, Tabs, Bullets, and Receptacles.
