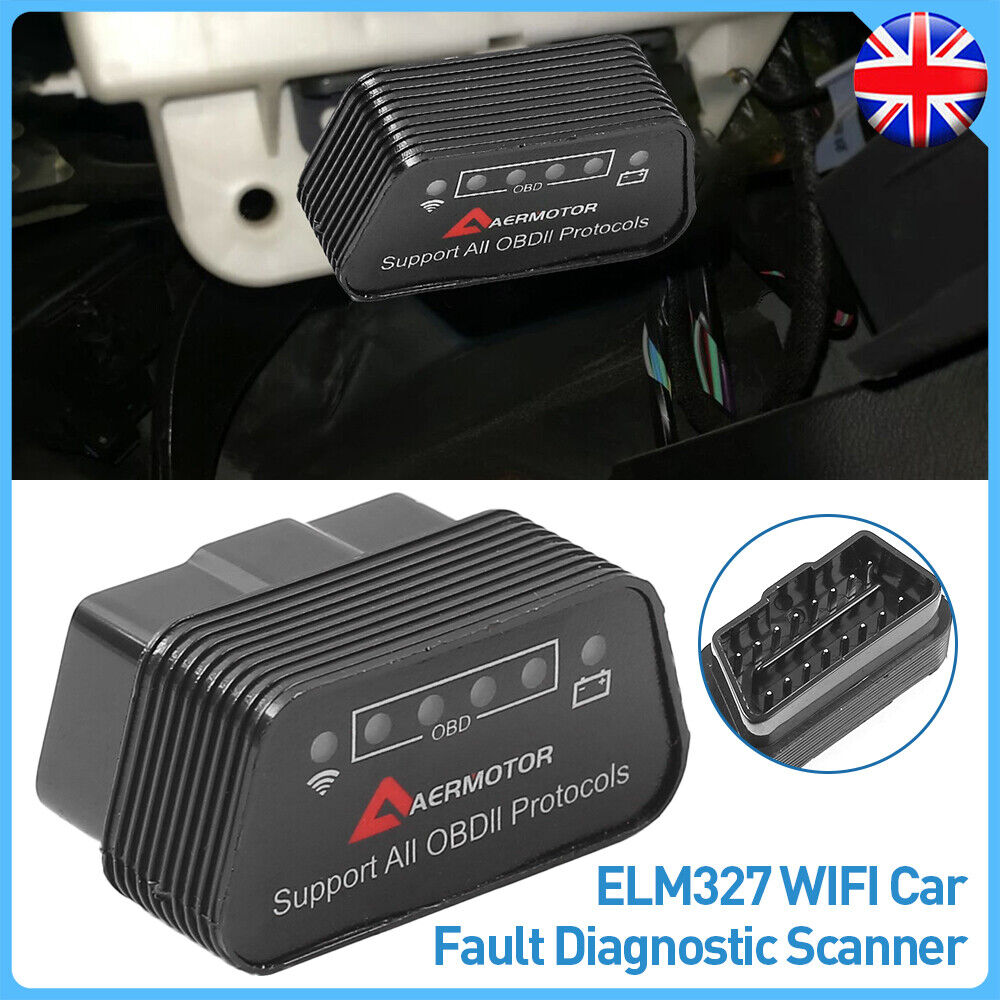

OBD2 Bluetooth Scanner – Fault Code Reader for Android & PC

OBD2 Bluetooth Scanner – a compact fault code reader for use with Android and iPhone devices. It supports all OBD-II self-diagnostic systems and compatible communication protocols, linking to your car to relay data such as engine speed, coolant temperature, fuel system status, vehicle speed, short-term and long-term fuel correction, throttle opening and fault codes.

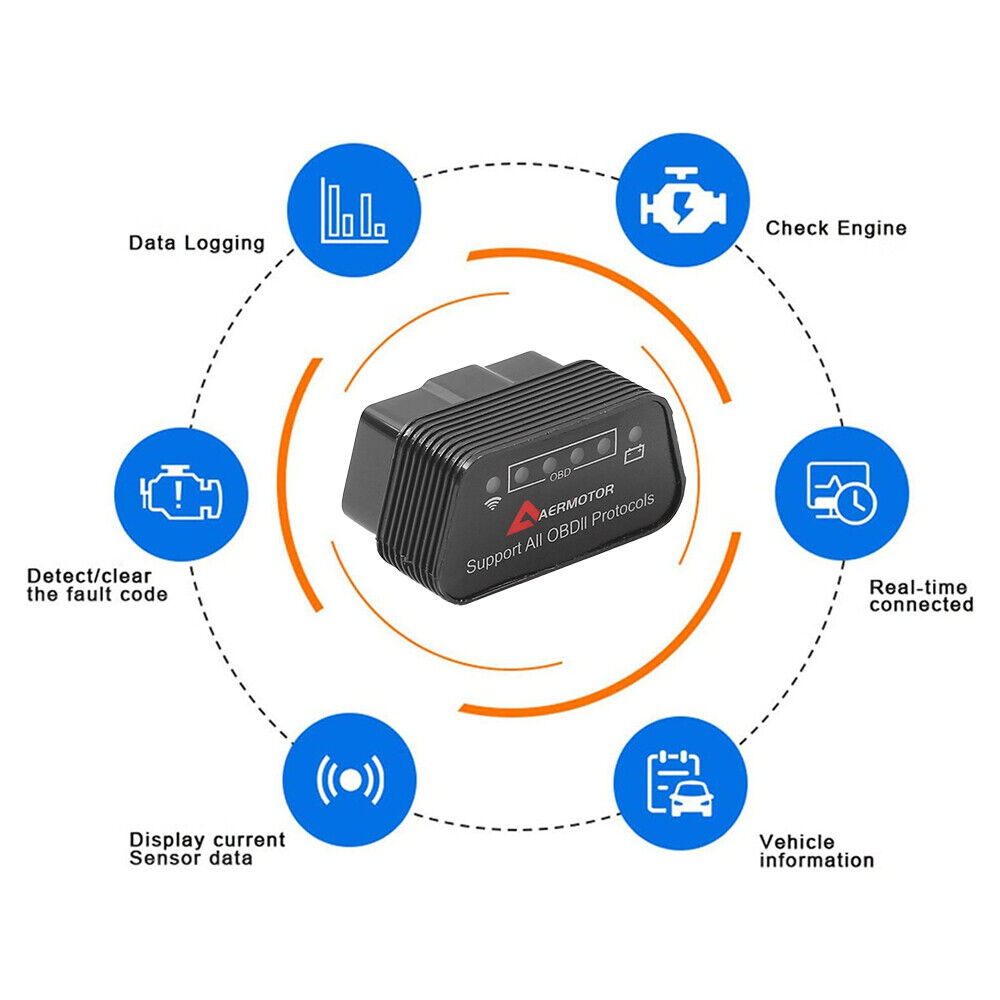

Features:

• Supports all OBD-II self-diagnostic systems and their compatible communication protocols
• Reads generic and manufacturer-specific diagnostic trouble codes and displays their definitions (database of over 3,000 fault codes)
• Clears fault codes and turns off the engine fault alarm indicator
• Reads engine real-time dynamic data flow
• Compatible with Android and iPhone (iOS) devices

Specifications:

• Colour: Black
• Material: Automotive-grade plastics
• Operating temperature: -40°C to 85°C
• Range: 50 ft (line of sight)
• Antenna: Internal
• Energy consumption: 0.75 Watts (with power switch)

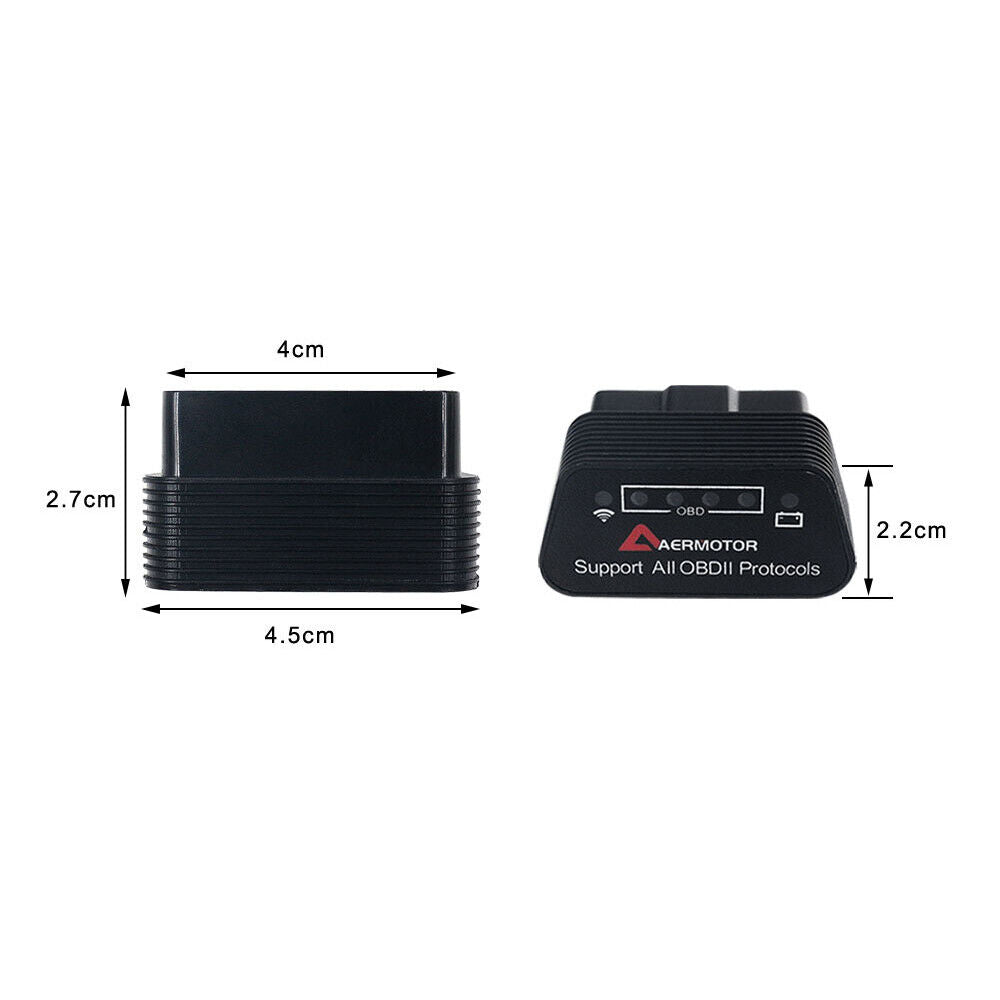

• Item size: 45 x 27 x 22mm / 1.77 x 1.06 x 0.87in
• Package weight: 50g / 1.76oz
• Package size: 80 x 65 x 35mm / 3.15 x 2.56 x 1.38in

The device allows you to perform the following operations:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3,000 generic code definitions in the database)
• Clear trouble codes and turn off the MIL ("Check Engine" light)
• Display current sensor data, including:
• Engine RPM
• Calculated load value
• Coolant temperature
• Fuel system status
• Vehicle speed
• Short-term fuel trim
• Long-term fuel trim
• Intake manifold pressure
• Timing advance
• Intake air temperature
• Air flow rate
• Absolute throttle position
• Oxygen sensor voltages/associated short-term fuel trims
• Fuel pressure

Supported OBD-II protocols:

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO9141-2 (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (quick init, 10.4 Kbaud)
• ISO15765-4 CAN (11 bit ID, 500 Kbaud)
• ISO15765-4 CAN (29 bit ID, 500 Kbaud)
• ISO15765-4 CAN (11 bit ID, 250 Kbaud)
• ISO15765-4 CAN (29 bit ID, 250 Kbaud)

Package includes:

• 1 x OBD2 Scanner
• 1 x User Manual
