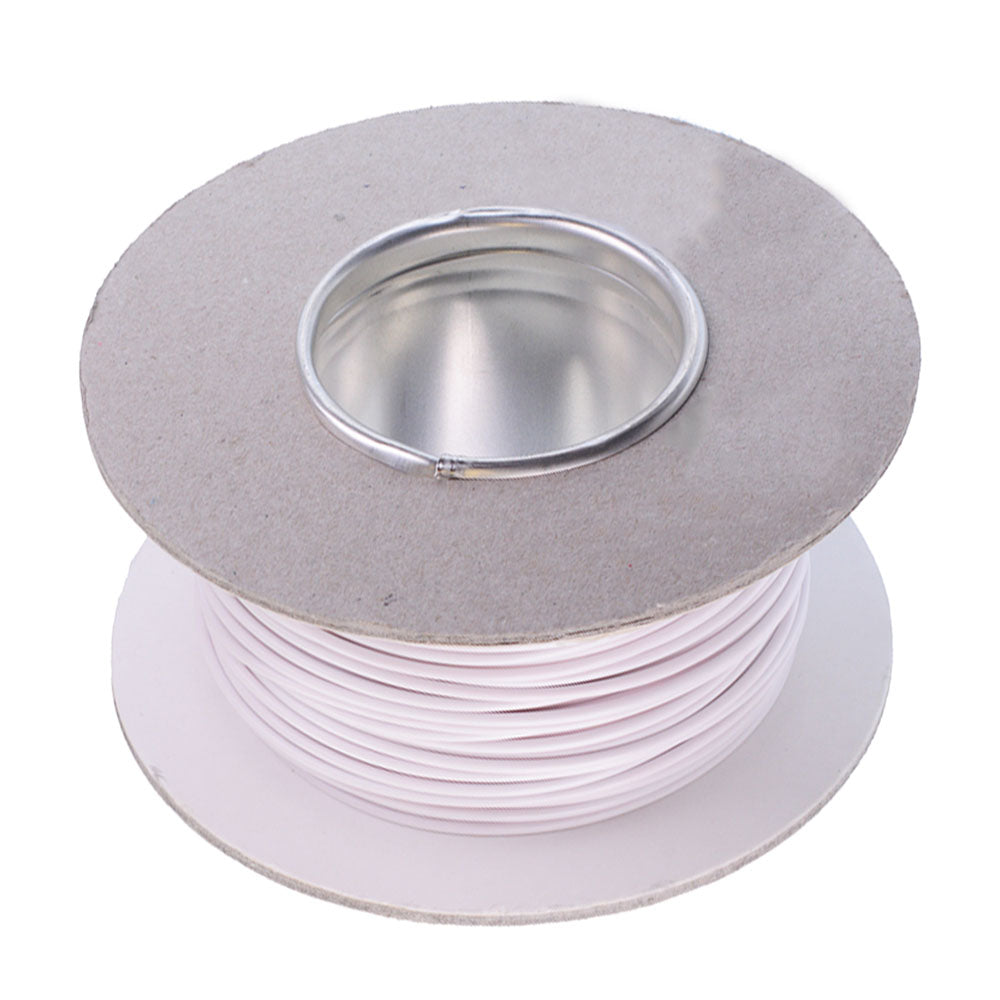

Single Core Cable Reel White 17.5 Amp 50m

Single Core Cable Reel White 17.5 Amp 50m

Reel Size = 50m

General purpose low voltage wiring cables suitable for use in the automotive & marine industries
as well as for home wiring or DIY projects.

Manufactured in accordance with BS6862 Part 1 1971, where applicable.
Suitable for 12v and 24v systems (Maximum 100v).
Resistant to petrol, diesel, lubricating oils and diluted acids.
Suitable for use at temperatures from -30°C to 70°C.
Plain copper conductors - PVC insulated.

Color: White

Conductor Specification (mm): 28/0.30
Nominal Current Rating (AMP): 17.5
Conductor Cross Section (mm²): 2.0
Maximum Overall Diameter (mm): 3.4
Maximum Loading (Watts)
12 Volts - 210
24 Volts - 420
Resistance per Meter at 20ºC (Ohms): 0.0094
